KSSlider™ Documentation


Contents


About KSSlider™ Template

KSSlider™ Template gives Clarion user an easy access to the standard MS Windows trackbar control.
KSSlider™ can be used in Clarion4, Clarion5 or Clarion5.5 32-bit application. With the help of the templates you will be able to handle standard Windows 32-bit trackbar control in a "Clarion Way". Templates support placing of the trackbar control on a winodow/sheet/tab, autoresizing, tooltips and many other features.

KSSlider™ Template is a pure Clarion source (no dll or lib black boxes) based on the ABC/Legacy compliant SliderClass! Start using the templates and give you Clarion applications native MS Windows 32-bit look.


About trackbar Controls

The common controls are a set of windows that are implemented by the common control library, which is a dynamic-link library (DLL) included with the Microsoft® Windows® operating system. Like other control windows, a common control is a child window that an application uses in conjunction with another window to perform I/O tasks.

A trackbar is a window that contains a slider and optional tick marks. When the user moves the slider, using either the mouse or the direction keys, the trackbar sends notification messages to indicate the change.


Trackbars are useful when you want the user to select a discrete value or a set of consecutive values in a range. For example, you might use a trackbar to allow the user to set the repeat rate of the keyboard by moving the slider to a given tick mark. The following illustration shows a typical trackbar.

A typical trackbar

The slider in a trackbar moves in increments that you specify when you create it. This range of values is referred to as logical units. For example, if you specify that the trackbar should have logical units that range from zero to five, the slider can occupy only six positions: a position at the left side of the trackbar and one position for each increment in the range. Typically, each of these positions is identified by a tick mark.




Getting started

The KSSlider™ Setup Program can automatically register the templates. If you don't wish to register the templates automatically you'll have to register it manually.

Start Clarion, select "Template registry" from the "Setup" menu. When the "Template registry" window opens, select the "Register" button on the right. Then you are prompted for a filename. Select KStrbar.tpl (for both ABC and Legacy template). These files are located in your TEMPLATE folder.

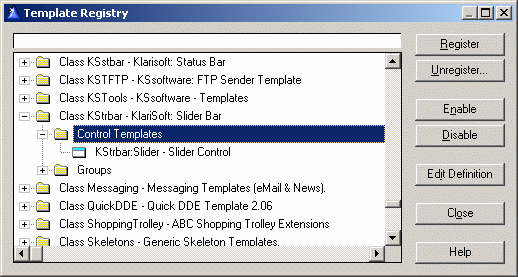

After registering your Template Registry window will look like:




Templates


Control Template

The images below show the template prompts for the KSSlider™ control template. You can find the detailed description in tables below.

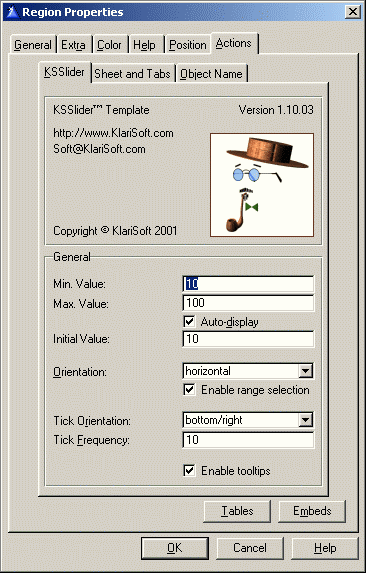

KSLider (General) Tab:

Prompt   Description
Min. Value   Sets the minimum position for the slider in a trackbar. This can be any valid Clarion expression.
Max. Value Sets the maximum position for the slider in a trackbar. This can be any valid Clarion expression.
Initial Value   Sets the initial position for the slider in a trackbar. This can be any valid Clarion expression.
Orientation Select the orientation of the trackbar. You can choose between horizontal and vertical.
Enable range selection   To enable range selection activate this checkbox.
Tick Orientation You can display tick marks on either or both sides of the trackbar. For horizontal trackbars, you can specify bottom or top. For vertical trackbars, you can specify right or left. For tick marks on both sides of the trackbar in any orientation, specify both.
Tick Frequency Sets the interval frequency for tick marks in a trackbar.
Enable tooltips When enabled, there will be a tooltip visible whenever the thumb is dragged by the mouse, displaying the current value.


Sheet and Tabs:

Usually it is not possible to place a Trackbar control onto a tab / sheet control, since Trackbar is not a Clarion control and therefore can't be handled by the Clarion runtime library. KSSlider™ Template solves this problem.

Prompt   Description
Attached to the Tab   Enable this check box if you put your KSSlider™ Control on a Tab.
Sheet Select Sheet Control.
Tab number Indicate Tab Number.

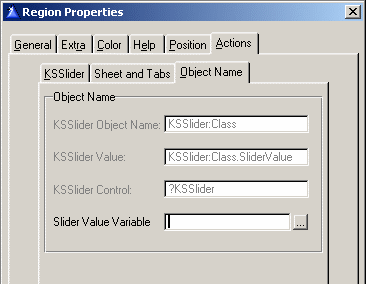

Object Name:

Prompt   Description
KSSlider Object Name   Name of KSSlider Control Object in the source code.
KSSlider Value The variable containing current trackbar's value. You can use this variable in the source code.
KSSlider Control Name of the KSSlider Control in a source code.
Slider Value Variable   Variable to receive trackbar's value (optional). You can select this variable from the file schematic.

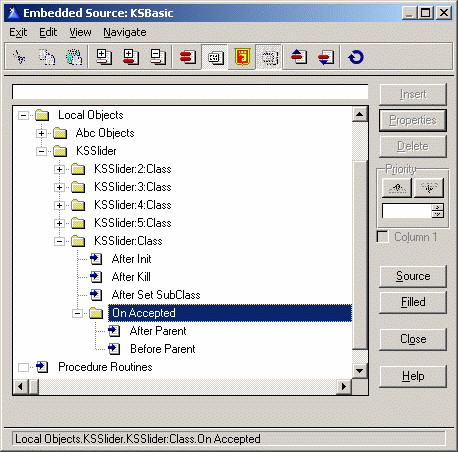

Embeds

The following embeds are provided for botth legacy and ABC template versions:

Embed points established in the source code:
- after call Init method
- after call Kill method
- after call Set SubClass method
- On Accepted After and Before Parent call


Among these points On Accepted  is very important. KSSlider™ passes the control to this embed point while changing slider position.

After Parent: After setting trakckbar's value to KSSlider Value (KSSlider:Class.SliderValue)

Before Parent: Before setting trakckbar's value to KSSlider Value (KSSlider:Class.SliderValue)






Class description

This table lists the KSSlider™ Properties and Methods.

Name   Type Description
Properties:

SliderValue
LONG Slider Value.

Methods:

GethWnd



PROCEDURE,LONG



Retrieves the handle of the trackbar control (for use with the api functions).

Returns:
Window handle of the trackbar control.

Init PROCEDURE Initializes the KSSlider™ control.
Kill PROCEDURE Kills and deinitializes the KSSlider™ control.
SetSubClass PROCEDURE Sets SubClass procedure.
CreateSlider PROCEDURE(<LONG Left>,<LONG Top>,
<LONG Width>, <LONG Height>,<SHORT Vertical>,
<SHORT EnableSelRange>), SHORT,PROC
Creates trackbar control.

Parameters:
Left:      left position of trackbar
Top:      top position of trackbar
Width:   width of trackbar
Height:   height of trackbar
Vertical: if true then trackbar is vertical else horizontal
EnableSelRange: if true then enable range selection.

Returns
:
Returns TRUE if sucessful.
ResizeSlider PROCEDURE(LONG left,LONG Top,LONG Width,LONG Height) Resizes the KSSLider™ Control in the window.

Parameters:
Left:      left position of trackbar
Top:      top position of trackbar
Width:   width of trackbar
Height:   height of trackbar
ClearTics PROCEDURE Removes all the current tick marks from a trackbar.
ClearSel PROCEDURE Clears current range selection.
Enable PROCEDURE(BYTE Enable) Enables or Disables KSSLider™ Control

Parameters:
Enable: if True then Enable Control if False then Disable Control
GetNumTics PROCEDURE(),LONG Retrieves the number of tick marks in a trackbar.

Returns:
Returns the number of tick marks.

GetSliderPos PROCEDURE(),LONG Retrieves the current position of the slider in a trackbar.

Returns:
Actual slider position.

SetFocus PROCEDURE() Sets focus to the trackbar.
SetPos PROCEDURE(LONG SliderValue) Sets the current position of the slider in a trackbar.

Parameters:
SliderValue: Position to move the slider to.

SetPosHwnd PROCEDURE(LONG hWnd, LONG SliderValue),
LONG
Sets the current position of any KSSlider  in the application.

Parameters:
hWnd: handle of the KSSlider Control in the app
SliderValue: Position to move the slider to.

SetRangeMin PROCEDURE(LONG MinRange) Sets the minimum position for the slider in a trackbar.

Parameters:
MinRange: Minimum position for the slider.

SetRangeMax PROCEDURE(LONG MaxRange) Sets the maximum position for the slider in a trackbar.

Parameters:
MaxRange: Minimum position for the slider.

SetSelStart PROCEDURE(LONG SelStart) Sets the starting position of the current selection in a trackbar.

Parameters:
SelStart: The starting position of the selection range.

SetSelEnd PROCEDURE(LONG SelEnd) Sets the end position of the current selection in a trackbar.

Parameters:
SelEnd: The end position of the selection range.

SetTic PROCEDURE(LONG Tick),SHORT,PROC Sets the position of a tick mark in a trackbar.

Parameters:
Tick: Position of the tick mark.

SetTicFreq PROCEDURE(LONG TicFreq) Sets the interval frequency for tick marks in a trackbar. For example, if the frequency is set to two, a tick mark is displayed for every other increment in the trackbar's range. The default setting for the frequency is one; that is, every increment in the range is associated with a tick mark. This is for use the the "auto" tick style only.

Parameters:
TicFreq: Frequency of the tick marks.

OnAccepted  PROCEDURE(),VIRTUAL Virtual procedure for receiving program control when slider is moving.
Hide PROCEDURE() Hides the KSSlider™ Control.
unHide PROCEDURE() Unhides the KSSlider™ Control.




Installed files

The following files will be copied to your hard disk during installation. All pathnames are relative to your Clarion root directory (e.g. C:\CLARION5,  C:\C55), depending on your choice during installation.

Directory File Name Definition
Example\KS\KSSlider   Clarion.ico
KSslapp.app
KSslapp.exe
KSslappL.app

KSSlider™ Demo Applications

KSslapp.app   - Clarion5.5 ABC example
KSslappL.app - Clarion5.5 Legacy example

KSslapp5.app   - Clarion5 ABC example
KSslap5L.app  - Clarion5 Legacy example

KSslapp4.app   - Clarion4 ABC example
KSslap4L.app  - Clarion4 Legacy example

If you install templates for Clarion4 then Clarion4 examples are installed.
If you install templates for Clarion5 then Clarion5 examples are installed.
If you install templates for Clarion5.5 then Clarion5.5 examples are installed.

KS\KSSlider KSSlider.htm

This documentation and images.
Lib KScomct.lib

Library (to link Clarion with Windows API)
Libsrc KStrbar.inc
KStrbar.clw

KSSlider™ Class Defenition
Template KSLogo.bmp
KStrbar.tpl
KStrbar.tpw

Template and templates image files.




Using KSSlider™ without templates

It is possible to use KSSlider™ without templates, but there are some things to consider:

You will need to include KStrbar.inc (located in your LIBSRC folder) manually.

You will also have to add a .lib file to your project:
Open the "Project editor" window, locate the "Library, object and resource files" entry and press "Add file". Select KScomct.lib file.




Copyright notice

KSSlider™ copyright © 2001 by KlariSoft. All rights reserved.




Contacts

For support, please write to Support@klarisoft.com
For updates of this product please visit http://www.klarisoft.com regularly.
